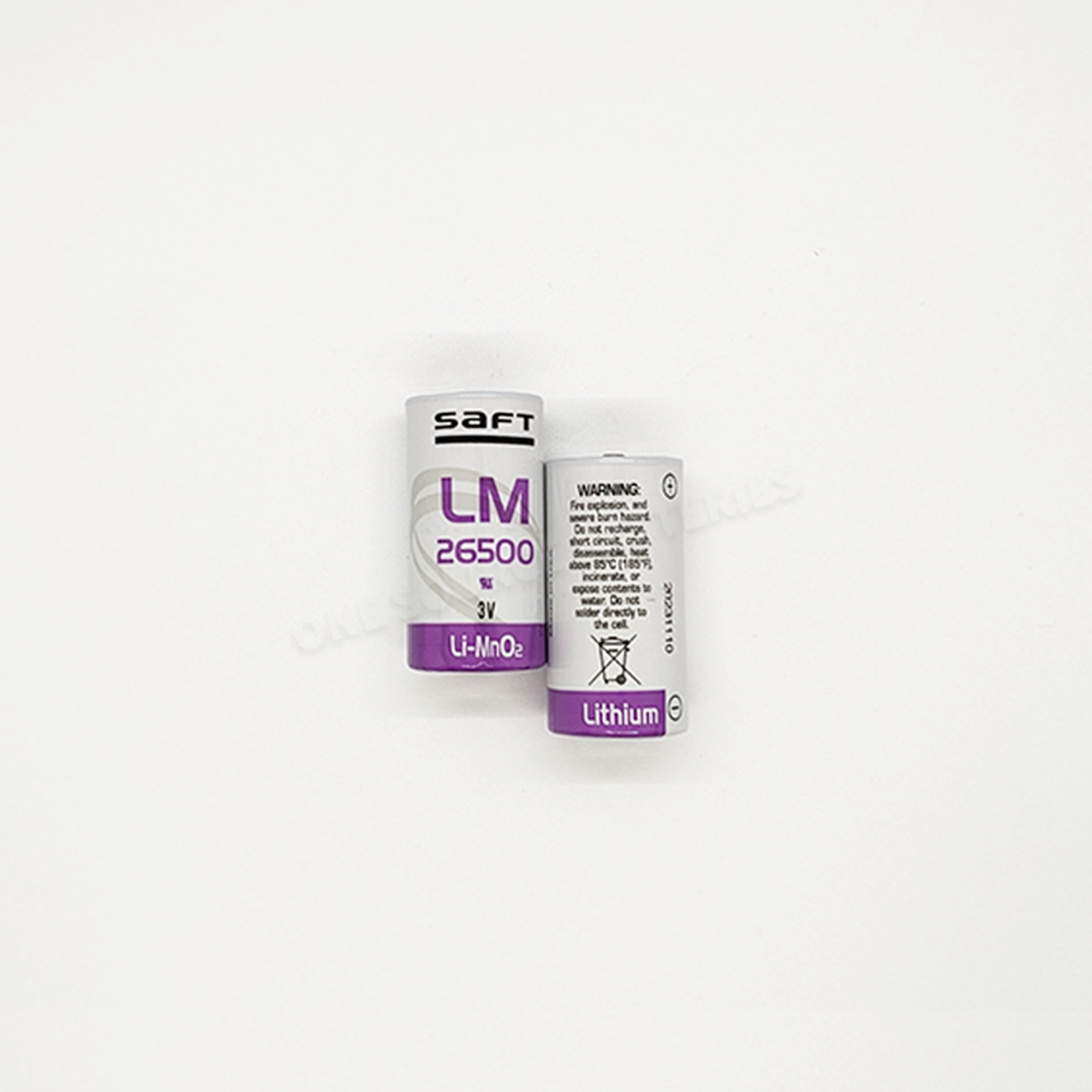

Saft LM26500-M — Lithium-Manganese Dioxide Power Built for Tough, Mission-Critical Duty

The Saft LM26500-M is a high-performance primary lithium battery designed to deliver rock-solid power in equipment that cannot fail. Built on proven lithium-manganese dioxide (Li-MnO₂) chemistry, it combines high energy density, stable voltage, broad temperature tolerance, and rugged construction to keep professional electronics running dependably for the long haul. Whether the job is powering remote instruments for months, serving as a robust backup supply in control panels, or driving portable gear in harsh field conditions, the LM26500-M brings a confident, no-nonsense power profile that engineers and technicians trust.

What Sets the LM26500-M Apart

• High energy density: Packs a lot of usable energy into a compact 26×50 mm “C-size” footprint, enabling longer runtimes or smaller battery bays.
• Stable, flat discharge: Li-MnO₂ chemistry holds voltage consistently under typical loads, which simplifies power budgeting and helps electronics operate predictably.
• Strong pulse capability: Handles moderate current bursts common in wireless transmissions, data logging intervals, and actuator events.
• Low self-discharge: Maintains readiness in storage or standby, ideal for devices that sit quiet until called on.
• Wide operating temperature range: Performs in cold outdoor sites and warm equipment enclosures, reducing the need for thermal mitigation.
• Rugged build: Cylindrical steel can, robust seals, and quality control from an industry leader in specialty lithium cells.

Typical Applications

The LM26500-M shines wherever reliability, long life, and predictable voltage matter more than anything else:

• Remote monitoring: Pipeline sensors, tank level transmitters, cathodic protection monitors, seismic nodes, and agriculture/soil moisture probes.
• Security and safety: Wireless alarm peripherals, door/window contacts with long standby, asset trackers, and motion or glassbreak sensors.
• Industrial controls: Memory and RTC backup in PLCs, valve/actuator controllers with intermittent duty, and control panel keep-alive supplies.
• Test and measurement: Portable instrument power where consistent readings and long field intervals are essential.
• Defense and field operations: Equipment that must remain ready after storage, then deliver dependable energy under demanding use.

At-a-Glance Feature Summary

Form Factor	C-size (approx. 26 mm diameter × 50 mm length)
Chemistry	Lithium-Manganese Dioxide (Li-MnO2)
Type	Primary (non-rechargeable)
Key Traits	High energy density, flat discharge, pulse capable, low self-discharge, wide temperature range
Typical Use Cases	Remote sensors, security, industrial backup, portable instrumentation

Why Li-MnO₂ for This Class of Work?

Among primary lithium chemistries, Li-MnO₂ is a stand-out for devices that need a balance of energy density, safety, and current capability. It offers a stable nominal voltage and a discharge profile that stays relatively flat across much of the cell’s life. Compared with alkaline C cells, Li-MnO₂ typically delivers longer life in demanding or variable loads and keeps a tighter voltage window, helping sensitive electronics avoid brownouts. Compared with some specialty chemistries oriented purely toward ultra-low currents, Li-MnO₂ usually supports higher pulse demands without elaborate power conditioning.

Engineering Considerations for a Clean Integration

To take full advantage of the LM26500-M’s capabilities, consider the power path and environmental envelope from the start of the design.

1) Power Budgeting & Current Profile

• Average current: Size the expected steady-state draw to the application’s duty cycle. Li-MnO₂ supports efficient, low-to-moderate average currents for long runtimes.
• Pulsed loads: For radio bursts, actuation spikes, or sensor warm-ups, add adequate bypass capacitance close to the load to buffer momentary peaks and preserve terminal voltage.
• Cutoff voltage: Choose a cutoff that respects the system’s minimum operating threshold and the cell’s recommended endpoint to prevent deep depletion.

2) Environment & Thermal Management

• Temperature: The LM26500-M is built for a wide range. Expect best performance within the specified operating band; extremely cold starts can benefit from brief wake-up periods or reduced initial pulse demands.
• Mechanical: Secure the cell against vibration and shock. Use holders or clips with proper spring force to maintain reliable contact without denting the can.

3) Protective Design

• Reverse insertion protection: Mechanical keying or diode ORing protects against accidental polarity reversal in field-replaceable designs.
• Short-circuit mitigation: Employ fusing or resettable protection when cells are user-accessible.
• No charging: As a primary lithium cell, the LM26500-M must never be charged. Disable any charge paths in mixed-chemistry or universal designs.

Installation & Field Replacement Best Practices

1. Power down if possible: Prevent inrush anomalies and ensure clean system restarts.
2. Inspect contacts: Clean, springy contacts reduce IR drop and heat. Replace worn holders.
3. Check polarity: Match the “+” terminal to the marked positive contact in the device.
4. Seat firmly: Ensure full contact engagement—no rattles, no partial insertions.
5. Functional test: After replacement, run a quick system check (e.g., a radio ping or sensor cycle).

Storage & Inventory Guidelines

• Cool, dry, ventilated: Ambient storage away from direct sun or heat sources preserves shelf life.
• Original packaging: Keep cells in their trays or sleeves to protect terminals and labeling.
• Batch rotation: Use first-in/first-out (FIFO) practices for predictable service intervals.
• Periodic checks: For critical spares, verify open-circuit voltage periodically as part of maintenance.

Runtime Planning: From Rule of Thumb to Confidence

Long life is a hallmark of the LM26500-M, but accurate planning still matters. Start with your device’s true duty cycle—sleep current, wake current, burst duration, and interval—and build a model that includes temperature and pulse derating. Add a safety margin, typically 15–25% for real-world variability. Where possible, log a small pilot set under field conditions to confirm assumptions before committing to a full deployment. This minimizes truck rolls and lets your team set maintenance schedules with confidence.

Design Patterns That Work Well

1) Low-Duty Wireless Telemetry

Wake the MCU on RTC, read sensors, buffer samples, transmit compressed data, then sleep—all within a tight burst. A local reservoir capacitor near the radio module smooths the demand on the cell. This pattern extracts excellent life from Li-MnO₂, taking advantage of low idle current and brief, predictable pulses.

2) Hybrid Backup with Supercapacitor

Pair the LM26500-M with a supercapacitor for equipment that must ride through short outages or deliver higher instantaneous power. The cell maintains charge on the supercap, while the cap supplies surge current to relays or RF links. This reduces voltage sag at the battery terminals and enhances longevity.

3) Dual-Source Redundancy

In panels with limited line power reliability, use the LM26500-M as a dedicated backup path isolated with diodes or ideal-OR controllers. The electronics always see a steady source; when mains or an auxiliary supply dips, the battery silently takes over.

Frequently Asked Questions

Is the LM26500-M rechargeable?

No. It is a primary (single-use) lithium cell. Do not attempt to recharge it.

How does it compare to alkaline C cells?

It generally offers better energy density, a more stable voltage curve under load, better cold-weather behavior, and superior shelf life—especially valuable in professional gear with intermittent pulses.

Can it deliver short, higher-current pulses?

Yes, within its rated envelope. For best results, include a bypass capacitor at the load and validate peak demands under worst-case temperature and state-of-charge conditions.

What about series/parallel configurations?

Series strings are common for higher voltage rails; parallel arrangements can increase available current. Only combine cells of the same model, age, and state of charge, and design for cell balancing and fault containment.

Is it safe for sealed enclosures?

Use enclosures with appropriate venting and ensure the device’s thermal profile remains within the cell’s operating range. Follow standard practices for primary lithium cells in closed spaces.

Safety and Handling

• No crush, puncture, or incineration: Avoid mechanical abuse and high temperatures.
• No short circuits: Use proper holders, covers, and fusing when user-replaceable.
• Transport: Follow applicable shipping rules for primary lithium batteries.
• Disposal: Use appropriate recycling programs according to local regulations.

Field-Proven Advantages for Operations Teams

Beyond the electrical specs, the LM26500-M simplifies life for operations and maintenance. Longer intervals mean fewer site visits. Predictable voltage simplifies remote diagnostics. Good cold-start behavior helps outdoor assets ride through winter without accessory heaters. And consistent QC across production lots supports enterprise rollouts where uniform behavior matters to firmware thresholds and alerting logic.

Comparing LM26500-M to Other Common Cells (Conceptual)

Cell	Form Factor	Chemistry	Best For
LM26500-M	C-size	Li-MnO2	Balanced energy and pulse performance; rugged field devices; long shelf and service life
Alkaline C	C-size	Alkaline	Low-cost, moderate loads, indoor environments with easy replacement
Li-SOCl2 C	C-size	Lithium-Thionyl Chloride	Ultra-low drain, very long life meters and memory backup with minimal pulsing

Deployment Checklist

• Confirm load profile (sleep, active, transmit) and peak currents.
• Select bypass capacitance to stabilize pulse behavior.
• Set cutoff thresholds consistent with device needs and battery endpoint.
• Validate cold-start behavior at the lowest expected temperature.
• Choose holders with secure spring contact and corrosion-resistant plating.
• Document replacement intervals and field procedures for technicians.

Troubleshooting Guide

Symptom: Device resets during radio burst

Likely cause: Insufficient local decoupling or end-of-life operation under cold conditions. Fix: Increase local capacitance, review transmit power, evaluate load shedding below a defined temperature or state of charge.

Symptom: Short runtime compared to plan

Likely cause: Underestimated idle current, extra wake events, or environmental extremes. Fix: Log real duty cycle, optimize firmware timing, re-plan with a margin suited to field conditions.

Symptom: Intermittent dropouts after replacement

Likely cause: Worn contacts, weak spring force, or oxidation. Fix: Replace holder, clean contacts, ensure proper mechanical retention.

Lifecycle Economics

An LM26500-M deployment often costs less over the life of the asset than cheaper chemistries. Fewer truck rolls, fewer false alarms from voltage sags, and fewer nuisance resets can dwarf the small delta in unit price. When devices sit hundreds of miles apart or up on towers, the cell that keeps you off a ladder is the economical choice.

Documentation to Provide Your Team

• Load and runtime model with real duty cycles and margins.
• Environmental envelope (min/max temperatures, vibration profile).
• Replacement SOP including ESD handling, polarity checks, and post-swap tests.
• Safety notes for transport, storage, and disposal.

Key Takeaways

• The LM26500-M delivers a rare blend of energy, stability, and durability in a C-size primary cell.
• It is engineered for long life, predictable voltage, and moderate pulse loads common to industrial and security electronics.
• Thoughtful integration—proper decoupling, good holders, and realistic duty planning—unlocks its full potential.
• For fleets and remote networks, it offers fewer service calls and more reliable uptime.

Quick Spec Snapshot

Note: Always verify exact electrical and environmental limits against your device’s requirements.

• Form factor: C-size cylindrical (≈ 26 × 50 mm)
• Chemistry: Li-MnO₂, primary
• Traits: High energy density, flat discharge, low self-discharge
• Use cases: Remote monitoring, security peripherals, industrial backup, portable instruments
• Best practices: Bypass capacitance for pulses, robust holder, defined cutoff voltage

Final Word

When the assignment calls for a C-size primary cell that simply works—quietly, predictably, and for a very long time—the Saft LM26500-M deserves a place at the top of the list. Its chemistry, construction, and performance profile align with the realities of field deployments: changing weather, sporadic pulses, scarce power budgets, and the mandate to just keep running. Specify it thoughtfully, validate it under your worst-case load and temperature, and it will return the favor with years of clean, dependable power.
