Lithium-Ion Batteries: How to Choose the Right Type

Quick picks by use case

• Home/van solar storage or 12 V lead-acid replacement: LiFePO4 (LFP) for long cycle life (2,000–5,000+) and stable thermal behavior.
• Electric bikes, scooters, and EVs needing high range: NMC or NCA for high energy density; ensure robust BMS and thermal management.
• Power tools and drones needing high power bursts: NMC or LMO blends; pouch “LiPo” packs offer high C-rates but need careful handling.
• Laptops/phones: LCO/NMC/NCA cells in prismatic or pouch formats; prioritize OEM-compatible packs and certified chargers.

How to choose: key criteria

1. System voltage
   • Nominal per cell: LFP ≈ 3.2 V; NMC/NCA/LCO/LMO ≈ 3.6–3.7 V.

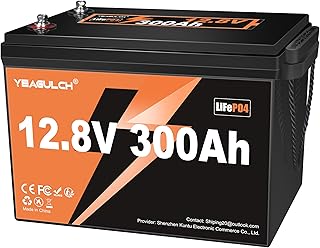

   • Common packs: 4S LFP ≈ 12.8 V (lead-acid replacement); 10S NMC ≈ 36 V (e-bikes); 13S NMC ≈ 48 V; 12S LFP ≈ 38.4 V.
2. Capacity (energy)
   • Wh = Voltage × Ah. Size for your daily use plus 20–30% reserve.
   • Example: 12.8 V × 100 Ah ≈ 1,280 Wh (1.28 kWh).
3. Current (power) and C-rate
   • C-rate is current relative to capacity. 1C on a 100 Ah pack = 100 A.
   • Check both continuous and peak discharge ratings vs your load (motors, inverters).
4. Cycle life and depth of discharge
   • LFP: typically 2,000–4,000+ cycles at 80% DoD; NMC/NCA: ~1,000–2,000; LCO: ~500–1,000 (varies by quality and use).
5. Temperature range
   • Typical charge: 0–45°C; discharge: −20–60°C (check datasheet). Charging below 0°C can damage cells unless rated for low-temp.
6. Safety, BMS, and compliance
   • Use packs with a Battery Management System (over/under-voltage, over-current, short-circuit, and cell balancing).
   • Look for certifications relevant to your application (e.g., UN38.3 for transport, UL/IEC where applicable).

Chemistry comparison

Chemistry	Nominal V/cell	Energy density	Typical cycle life	Thermal behavior	Common uses
LFP (LiFePO4)	≈ 3.2 V	Moderate (~90–160 Wh/kg)	2,000–5,000+	Very stable	Solar storage, RV/boat house batteries, backup power
NMC (LiNiMnCoO2)	≈ 3.6–3.7 V	High (~150–250 Wh/kg)	1,000–2,000	Good with BMS	EVs, e-bikes, tools, energy storage
NCA (LiNiCoAlO2)	≈ 3.6–3.7 V	Very high (~180–260 Wh/kg)	1,000–2,000	Good with BMS	EVs, long-range applications
LCO (LiCoO2)	≈ 3.6–3.7 V	High (~150–200 Wh/kg)	~500–1,000	More sensitive	Consumer electronics
LMO (LiMn2O4)	≈ 3.6–3.7 V	Moderate (~100–150 Wh/kg)	~1,000–1,500	Stable	Power tools, medical devices, blends with NMC

Form factors and pack styles

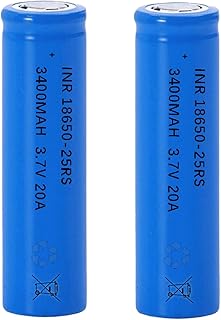

• Cylindrical (18650, 21700): Durable, good thermal characteristics; widely used in EVs and tools.
• Prismatic: Higher capacity per cell, efficient packing; common in energy storage and EV modules.
• Pouch (often called “LiPo”): Light and power-dense; requires careful mechanical protection against swelling and puncture.

Charging and BMS basics

• Use chemistry-appropriate chargers. Do not charge Li-ion with a lead-acid-only charger.
• Charge termination voltage per cell: LFP ≈ 3.65 V; NMC/NCA/LCO/LMO ≈ 4.20 V (check datasheet).
• Typical charge rate: 0.5C–1C (e.g., 50–100 A for a 100 Ah pack) if allowed by the BMS and cells.
• Storage: 30–60% state of charge, cool/dry place; check every 3–6 months.
• Vehicle alternators: use a DC-DC charger when charging LFP from a 12 V system to avoid over-voltage and alternator stress.

Runtime estimates

Simple formula: Runtime (hours) ≈ (Battery Wh × system efficiency) ÷ Load W.

• Example 1: 12.8 V 100 Ah LFP ≈ 1,280 Wh. With 85% efficiency powering a 60 W load: (1,280 × 0.85) ÷ 60 ≈ 18 hours.
• Example 2: 48 V 15 Ah NMC e‑bike pack ≈ 720 Wh. Average draw 400 W: 720 ÷ 400 ≈ 1.8 hours (terrain and assist level vary results).

Pros and cons vs other options

• Advantages: High energy density, low self-discharge, fast charging, long life (especially LFP), stable voltage.
• Trade-offs: Higher upfront cost than lead-acid; performance drops in cold; requires BMS and proper charging.
• When to consider alternatives: For ultra-low cost standby use with rare cycling, lead-acid can be economical; for standard AA/AAA sizes, NiMH remains practical.

Safety essentials

• Use packs with integrated protection and quality cells; avoid mixing old/new or different capacities in series/parallel.
• Avoid puncture, crushing, short circuits, and exposure to heat sources. Stop use if swelling, odor, or abnormal heat occurs.
• Charge on a nonflammable surface with a compatible charger; monitor the first few charge cycles of any new pack.
• Transport and dispose through approved channels; many products require UN38.3 testing for shipping. Recycle—do not trash.

FAQ

How long do lithium-ion batteries last?

Expect roughly 500–1,000 cycles for LCO, ~1,000–2,000 for NMC/NCA, and 2,000–4,000+ for LFP at ~80% depth of discharge. Actual life varies with temperature, charge rates, and DoD.

Can I connect packs in series or parallel?

Only if they are the same chemistry, capacity, age, and state of charge, and the BMS is rated for the configuration. Mismatched packs can cause imbalance and failures.

What’s the difference between Li-ion and “LiPo”?

“LiPo” refers to pouch-format Li-ion cells (often NMC chemistry) using polymer electrolytes. They can offer high power but require careful mechanical protection.

How do I size a charger?

Choose a charger with the correct chemistry profile and pack voltage. A charge rate near 0.5C is gentle (e.g., 50 A for 100 Ah), but never exceed the pack’s specified max charge current.

Is cold-weather charging safe?

Standard Li-ion should not be charged below 0°C (32°F) unless specifically rated for low-temperature charging. Discharge is usually acceptable to about −20°C with reduced performance.
