NiCd Batteries: How to Choose, Use, and Maintain

Nickel-Cadmium (NiCd) batteries are designed for reliability under stress—cold starts, heat, high pulse currents, and frequent cycling. They remain a strong choice for power tools, emergency lighting, industrial backup, and mission-critical gear where predictable performance matters more than energy density.

When to Choose NiCd

• Use if you need dependable power in extreme temperatures (roughly -20°C to +50°C, model-dependent).
• Use for high burst current applications (power tools, actuators, radio gear).
• Use for standby/trickle-charged systems (emergency lighting, telecom backup).
• Use if fast charging and long cycle life under abuse are priorities.

When to Avoid

• Avoid if you need the lightest, most compact pack (lithium-ion is better).
• Avoid where cadmium restrictions apply or recycling is impractical.
• Avoid for low-drain consumer devices where long runtime per charge is the goal (NiMH or Li-ion typically last longer per charge).

How to Select the Right NiCd

1. Define the voltage: NiCd cells are 1.2 V nominal. Choose series cell count to meet device voltage.

   Nominal Pack Voltage	Series Cells	Examples
   3.6 V	3s	Small electronics
   4.8 V	4s	RC, instruments
   6.0 V	5s	Legacy gear
   7.2 V	6s	Portable radios
   9.6 V	8s	Emergency lighting
   12.0 V	10s	Backup systems
   14.4 V	12s	Tools, industrial
   18.0 V	15s	Power tools
   24.0 V	20s	Industrial, mobility

2. Pick the format:

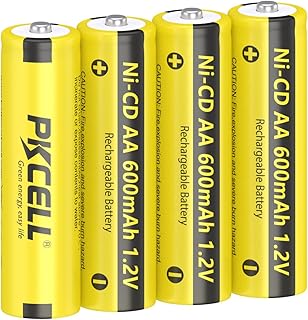

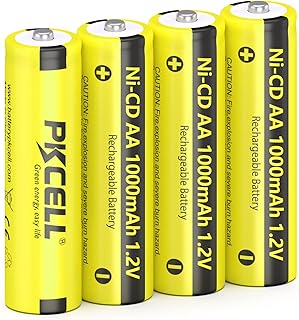

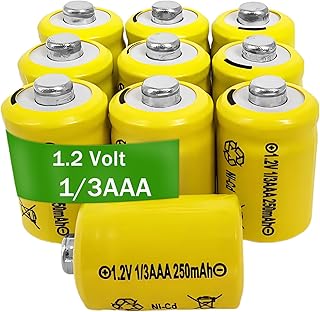

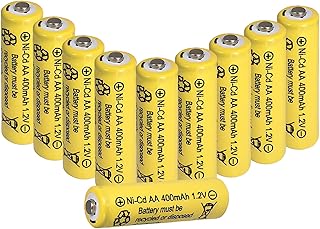

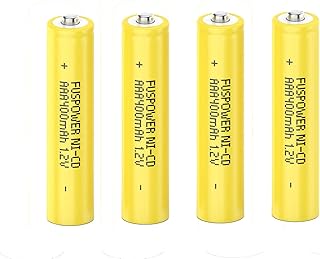

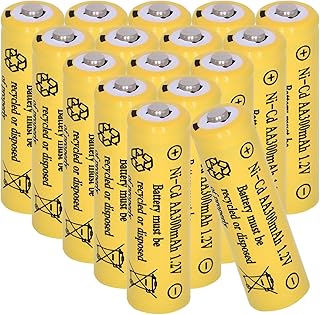

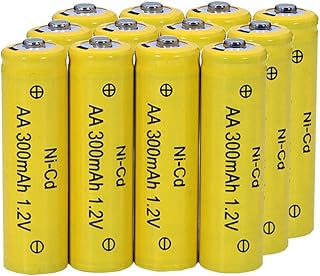

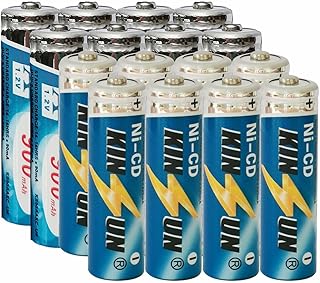

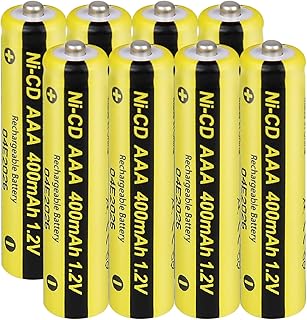

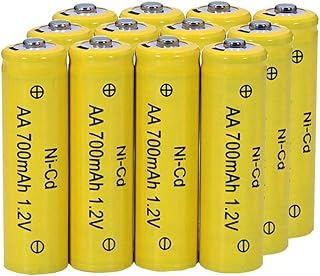

   • Sealed cylindrical (AAA, AA, Sub-C, C, D): common for tools and packs; Sub-C is typical for high-drain packs.
   • Prismatic/vented industrial cells: for stationary backup with long life and high temperature tolerance.
3. Size capacity (Ah): Match expected runtime using the simple estimate below. Higher Ah means longer runtime but larger/heavier packs.
4. Discharge rate: For high current loads, choose cells rated for high C discharge and low internal resistance.
5. Temperature rating: Check datasheets for charge/discharge ranges and high-temperature standby ratings (some emergency-lighting NiCd are rated for hot ceilings).

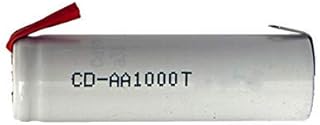

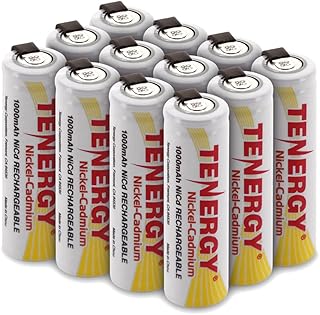

6. Terminations and build: Choose tabs, button-top/flat-top, or welded packs to fit your device. Ensure physical fit and secure mounting.
7. Charger compatibility: Use a NiCd-compatible charger (delta-V and temperature monitoring). Do not use Li-ion chargers.
8. Compliance and recycling: Verify local rules for cadmium; plan for end-of-life recycling.

Quick Runtime Estimate

Approximate runtime (hours) = Battery capacity (Ah) ÷ Load current (A).

Example: A 18 V, 2.0 Ah NiCd tool pack driving a 10 A load ≈ 2.0 ÷ 10 = 0.2 hours (about 12 minutes). Real runtime varies with temperature, age, and duty cycle.

Charging and Maintenance

• Fast charge: Typically 0.5–1C with -ΔV and temperature cutoff; expect 1–2 hours depending on rate and charger.
• Standard charge: ~0.1C for 12–16 hours for gentle, full charge.
• Trickle charge: 0.03–0.05C to maintain standby packs (follow manufacturer guidance to avoid overcharge stress).
• Memory effect: If capacity appears reduced after many partial cycles, perform an occasional controlled conditioning cycle (full charge, then discharge to about 1.0 V per cell under light load, then recharge). Do not repeatedly deep-discharge; avoid reversing cells.
• Storage: Store in a cool, dry place at partial to full charge; recharge before use after long storage. Label date and service intervals for fleet packs.

Safety and Handling

• Use only NiCd-rated chargers; never charge NiCd with a Li-ion charger.
• Do not short-circuit, crush, or incinerate. Ventilation is recommended during fast charge (especially for vented cells).
• Recycle through certified programs; cadmium is hazardous—do not dispose in household trash.
• For shipping and large industrial batteries, check current transport regulations and packaging requirements.

NiCd vs Alternatives

Common Use Cases

• Power tools: High discharge and fast turnaround; choose Sub-C cells, high C-rate, rugged packs.
• Emergency lighting: High-temp-rated NiCd with trickle charge; prioritize long calendar life.
• Industrial backup/controls: Vented/prismatic NiCd with long-life standby performance.
• Aviation and mission-critical: Specialized, serviceable NiCd where reliability is paramount and maintenance is scheduled.

FAQ
